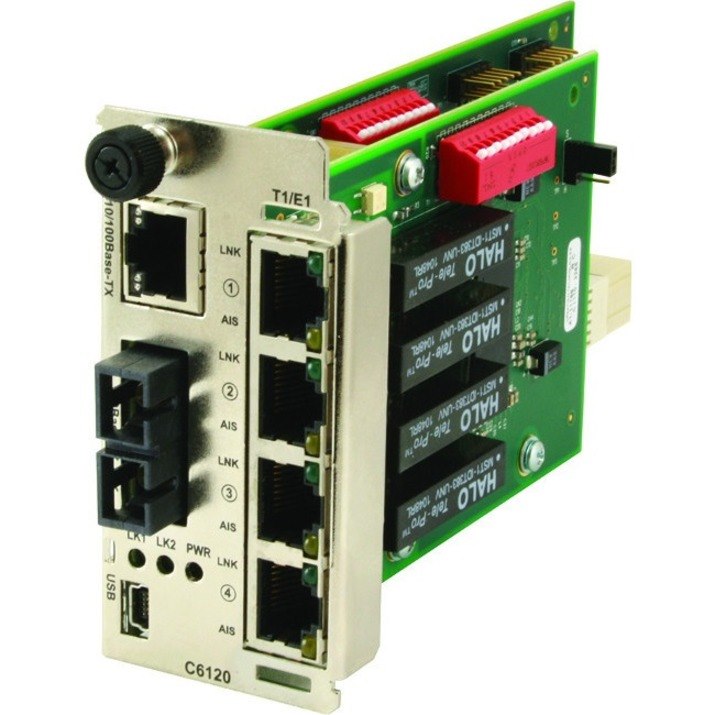

The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location.
- General Information
- Manufacturer
- Transition Networks, Inc
- Manufacturer Website Address
- http://www.transition.com
- Brand Name
- Transition Networks
- Product Series
- C6120
- Product Type
- Interface Module
- Technical Information
- Application/Usage
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 2
- Connector Type
- RJ-45
- RJ-48
- SC
- Interfaces/Ports Details
- 4 x RJ-48 T1/E1/J1 Network
- 1 x RJ-45 10/100Base-TX Network
- 1 x SC 100Base-X Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- Fast Ethernet
- Network Technology
- T1/E1/J1
- 10/100Base-TX
- 100Base-X
- T1/E1
- Physical Characteristics
- Height
- 3.4"
- Width
- 1.7"
- Depth
- 6.5"
- Miscellaneous
- Compatibility
- Transition Networks ION Chassis
- Country of Origin
- United States
