- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System

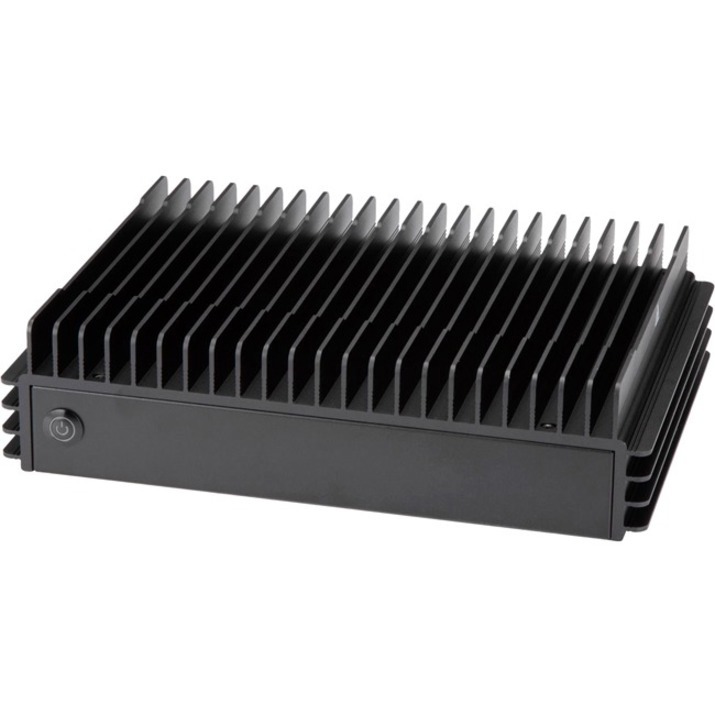

Compact and Industrial Systems
Space-saving systems for a variety of industrial, medical, security, SD-WAN, uCPE, and network Edge computing needs
- Ranging from compact systems to configurable high-performance, wall-mountable box PC servers
- Supermicro's Embedded SuperServers are application optimized, cost-effective and ideal for space-constrained applications
- Designs supporting a wide range of processors from Intel® Atom® to Intel Xeon® D
- Multiple Form Factors optimized for your IoT or Embedded Application
- Competitive Price/Performance while providing high-reliability, low-power operation
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket BGA-1310
- Processor Type
- Atom
- Processor Model
- C3558
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 2.20 GHz
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 4
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Model
- AST2400
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of SATA Interfaces
- 2
- Number of VGA Ports
- 1
- Power Description
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 60 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3"
- Width
- 11.6"
- Depth
- 8.1"
- Weight (Approximate)
- 3.44 lb
