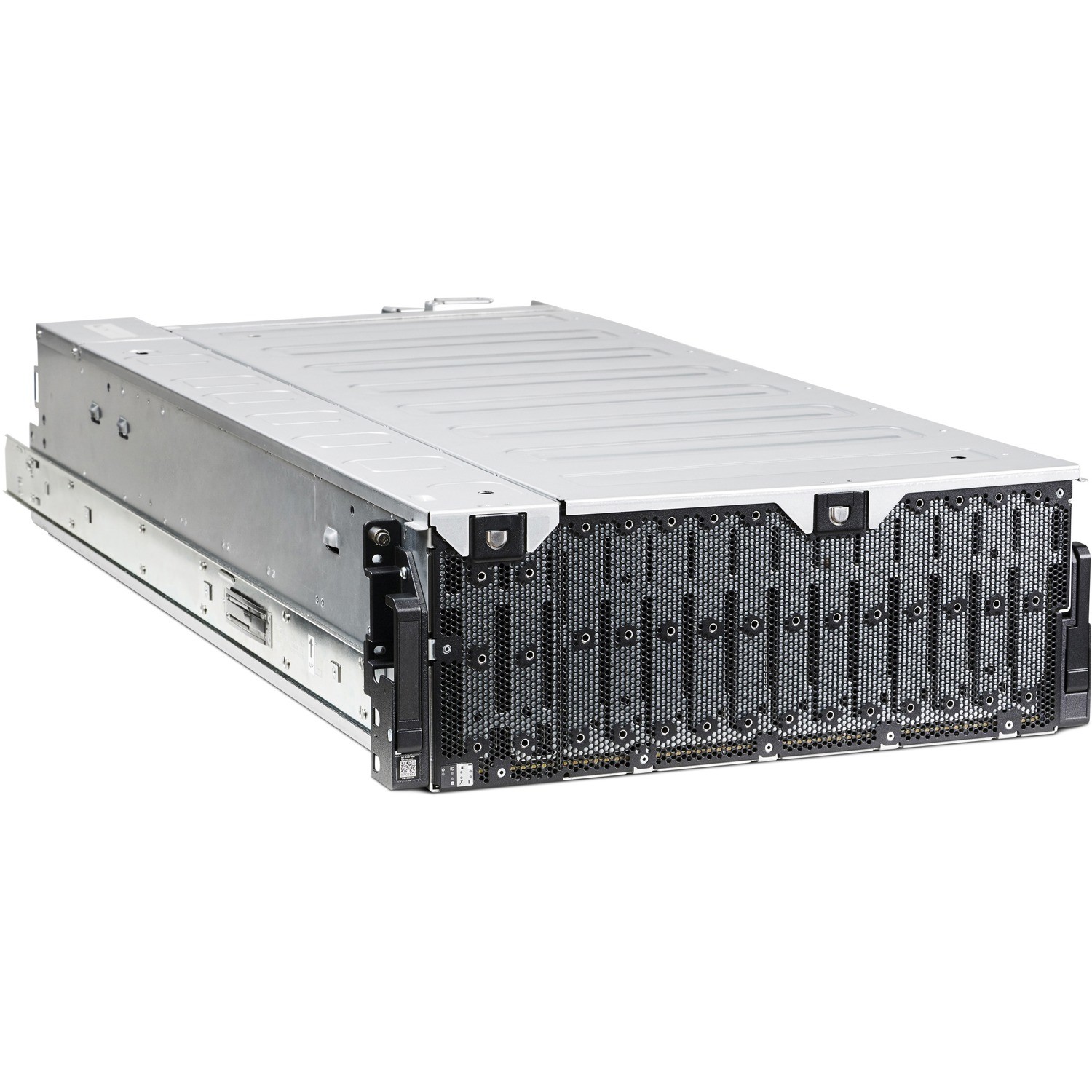

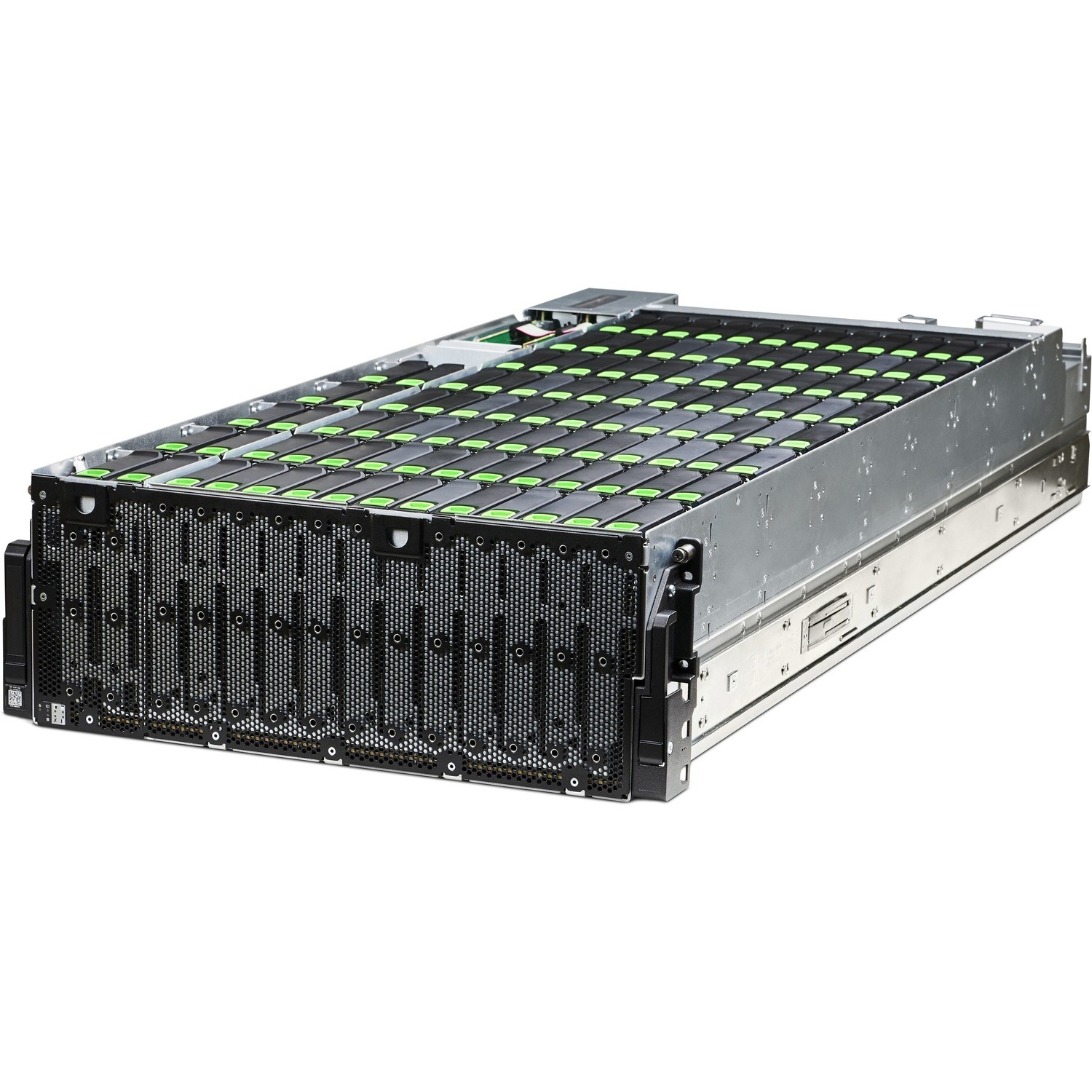

Seagate CORVAULT 4U106 RAID 12G SAS Self Healing Managed Rackmount Storage System - includes 2.12PB 106x 20TB 3.5" Exos Hard Drives (HDD), 1.2m deep, advanced data protection, autonomous drive regeneration (ADR), ADAPT rebuild, 5-year limited warranty
- Part: 1171118
- General Information
- Manufacturer
- Seagate Technology
- Manufacturer Website Address
- http://www.seagate.com
- Brand Name
- Seagate
- Product Type
- DAS Storage System
Exos® CORVAULT Self Healing Storage redefines petabyte-scale storage infrastructure with industry-leading innovation in every aspect of the system.
Key Advantages
Introducing a new category of intelligent storage. Exos CORVAULT delivers sophisticated data protection, security and streamlined management to tackle the challenges of an exascale world.Reliable and Self-healing. Field-proven design with five-nines (99.999%) availability. Autonomous Drive Regeneration (ADR) reduces human intervention and e-waste by automatically renewing hard drives "in situ" and on the fly.
Hyperscale-class efficiencies. Combining maximum data density of up to 2.120 PB raw (using 20 TB drives) in 4U with the latest hard drive technology delivers storage efficiencies similar to cutting-edge cloud service providers.
Architected for speed and resilience. Redundant active-active controllers powered by the 6th gen VelosCT ASIC and ADAPT erasure code data protection software dramatically streamline overhead, throughput, management and recovery.
Powerful configuration and management. One-button configuration accelerates deployment, while informative remote diagnostics and non-disruptive system updates simplify maintenance.
Seagate Secure built in. Hard drives are self-encrypting (SED) for maximum security without controller-level overhead. SFTP for secure file transfer. Optional FIPS 140-3 configuration.
- Warranty
- Limited Warranty
- 5 Year
- Storage
- Number of Hard Drives Supported
- 106
- Number of Hard Drives Installed
- 106
- Total Hard Drive Capacity Supported
- 2170.88 TB
- Total Hard Drive Capacity Installed
- 2170.88 TB
- Hard Drive Interface
- Serial Attached SCSI (SAS)
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 106
- Controllers
- Controller Type
- Serial Attached SCSI (SAS)
- RAID Supported
- Yes
- Interfaces/Ports
- Host Interface
- 12Gb/s SAS
- Number of SAS Ports (External)
- 4
- Management & Protocols
- Protocols
- HTTPS
- SSL
- SSH
- SMTP
- HTTP
- Power Description
- Maximum Power Supply Wattage
- 2000 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 6.9"
- Width
- 17.4"
- Depth
- 44.8"
- Rack Height
- 4U
- Weight (Approximate)
- 289.91 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
